183CA24 Webbing Tie Down (MC1 Variant)

Easy Load Quick Release

Easy to Load, quick to release; this version of the MC1 also includes a unique clutch mechanism allowing the slack to be taken up without reloading.



Built to Last

We coat all metal surfaces with high technology defence standard treatments giving maximum endurance.

The nylon webbing is specially treated to resist abrasive and UV damage.



Quality Assured

Manufactured in our MAA approved, and AS9100D | ISO 9001:2015 certified factory, we select samples from each batch and test to ultimate load. We guarantee unmatched quality and proven reliability.

The Drallim MC1 Webbing Tie Down range is the epitome of secure cargo restraint, combining robust construction, versatile application, and user-friendly design. With Drallim’s commitment to quality and customer satisfaction, you can trust in the MC1 Webbing Tie Down to provide unmatched security and reliability in your cargo operations.

183CA24 (MC1 Variant) Brochure





Description

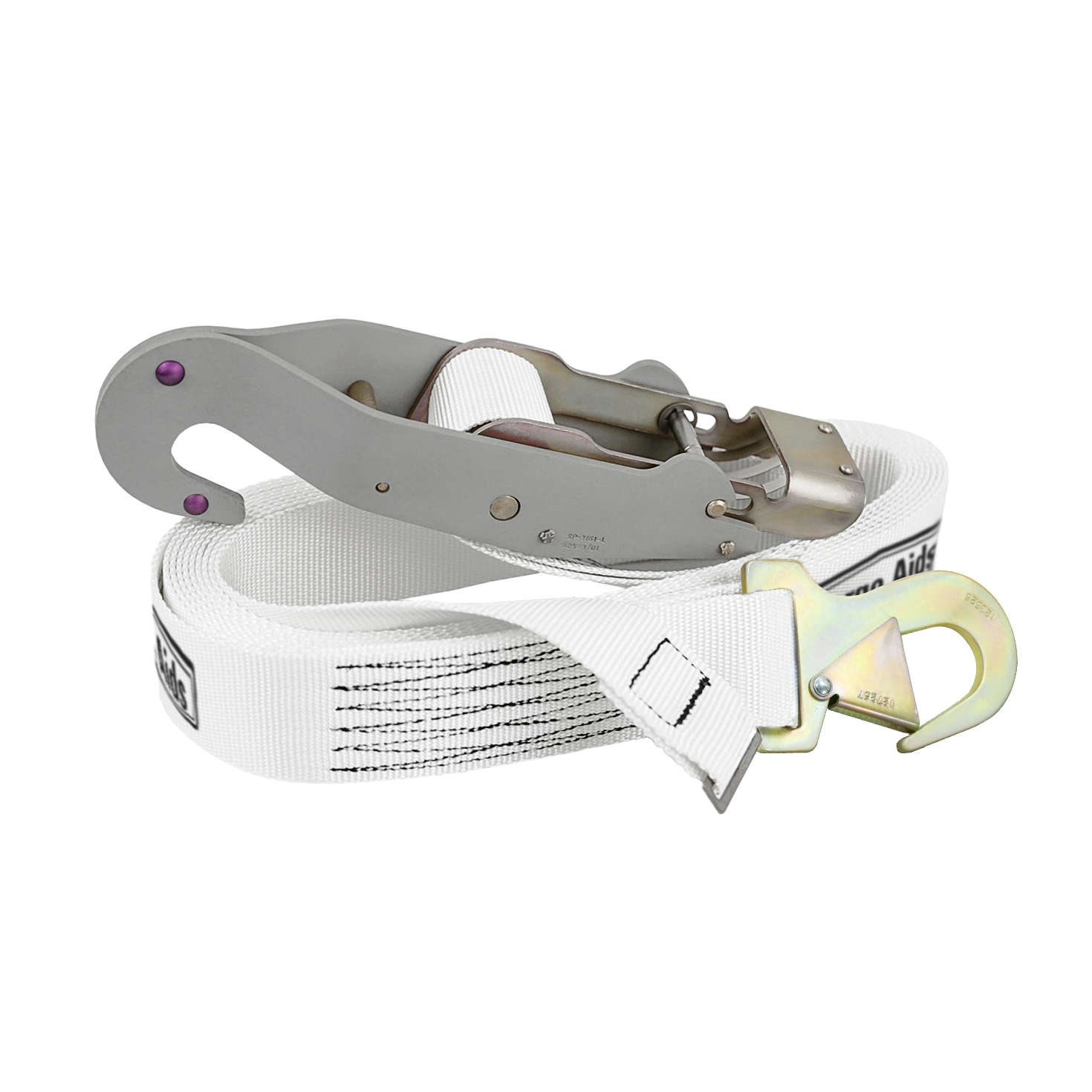

A proven, lightweight, user friendly lashing, extensively deployed by the defence industry. This MC1 variant has been designed to secure embarked helicopters to ships flight decks. The hook end accepts ø22.5mm bar (Max), whilst the fixed snap-hook on the end of the webbing accepts a ø25mm Bar (Max).

This nylon webbing tie down has a fast single action over centre mechanism which gives tension and locking in one easy movement. It is impossible to over tension, and the slack can be taken up without reloading the mechanism. Release is a reverse single action.

Historically chosen and approved by the MOD for its simplicity and outstanding robust quality, it has outlasted many other tensioning devices.
Manufactured in our MAA approved and AS9100D certified factory, we proof load select samples from each batch. We guarantee unmatched quality and proven reliability.

Rigorously tested to the high standards required by the defence and aircraft industry.

The nylon webbing is treated to resist abrasion and the effects of sunlight. The mechanical components are treated with defence standard coatings to give maximum durability.



Due to EU Regulations, this lashing is only available for Military use. It is not available for sale for commercial purposes.

Additional information

Weight 1.36 kg
Dimensions 7.6 × 25.4 mm
NATO stock number

3940-99-766-0786

Design Load | LC

3,000lb (1,360Kg)

Ultimate Load | BF Min

4,500lb (2,041Kg)

Webbing width

45mm

Weight with 6m webbing

3lb (1.36Kg)

Material

Aluminium, Nylon, Steel
