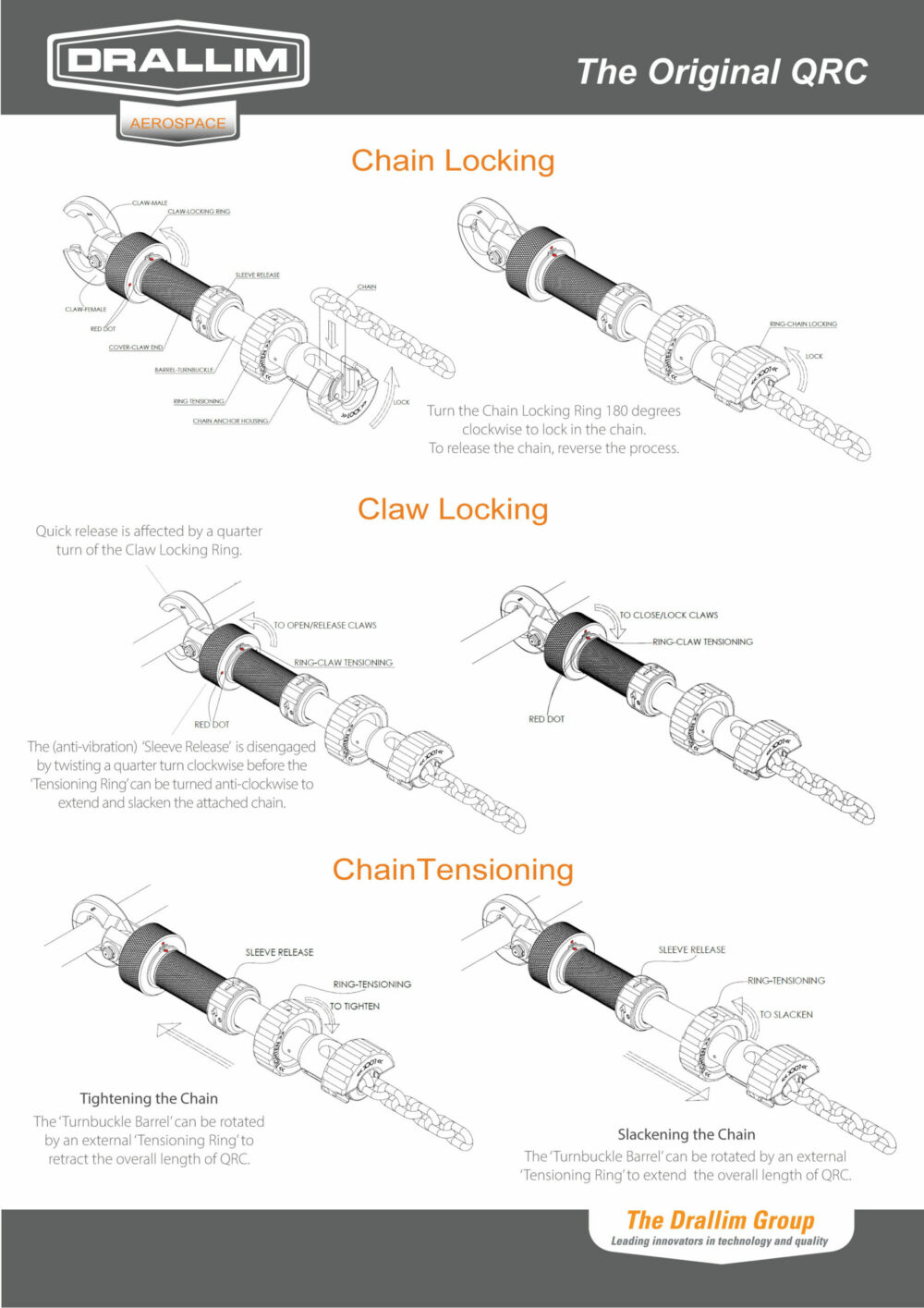

This is a rugged, heavy-duty tensioner for use in all situations. At one end is a double-jaw claw-type connector, operated by a quarter turn of a knurled hand grip, which attaches to a securing ring or other suitable strong point. At the other end of the coupling is a chain, and, after all, the slack has been taken up, it is secured by means of a half-turn of the lock. Turning the built-in handwheel on the body of the coupling produces the required tension in the lashing. Quick release is effected by a quarter turn of the handgrip. The adjustment includes a vibration proof anti-back-off lock, applied automatically, disengaged by twisting the release sleeve.
| Cargo Aids Designation: | Coupling Adjustable with Anti-Vibration lock |
| Part Number: | 100CA27 |
| Ultimate Capacity: | 6,350 kg (14,000lb) |
| Weight: | 2.18kg (4.81lb) |
| Part number | Description | Design Load | LC | NATO Stock Number/Patents |
| CA14 | Quick release Coupling (QRC) | 8,000 lb (3,630 kg) | NSN: 3940-99-7660785 |
| C10 | Quick release Coupling (QRC) | 10,000 lb (4,536 kg) | NSN: 1670-99-1302398 |
| C5 | Quick release Coupling (QRC) | 5,000 lb (2,268 kg) | NSN: 1670-99-1028971 |
| Weight | 2.18 kg |
|---|---|
| Dimensions | 41.76 mm |
| Designation | Coupling Adjustable with Anti-Vibration lock |
| Design Load | LC | 8,000lb (3,628Kg) |
| Proof load | 10,000lb (4,536Kg) |
| Ultimate Load | BF Min | 14,000lb (6,350Kg) |
| UK Patent | 2307531 |
Please contact our sales for the product information. E-mail : [email protected]
