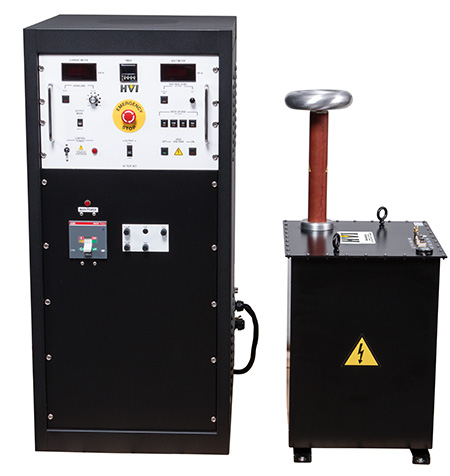

The VLF-200CMF provides a 200kVac peak output voltage, suitable for performing VLF hipot tests on 138kV cable and as a voltage source for Tan Delta and Partial Discharge testing on 230kV cable. The controls offer all the features of our other VLF models along with VLF Cable Burning. Trailer mount optional.

“Highest Voltage Rating Available”

  • Sine wave output 0.1, 0.5 and 0.02 Hz
  • Continuously adjustable output voltage
  • Continuous duty rating
  • Fixed thermal circuit breaker overload
  • ‘zero start’ and external interlock provision
  • Single-range voltmeter
  • Single range current/capacitance meter
  • Two-piece portable design
  • Transit protected metering
Input: 230V, 50/60Hz, 80A peak
Output: 0 – 200kVac peak, 100mA, 0.1/0.05/0.02Hz sinusoidal
Duty: Continuous
Load Rating: 0.75μF @ 0.1Hz, 1.5μF @ 0.05Hz, 3.75μF @ 0.02Hz
Cable burning: Yes
Voltage: 3.5″, 0 – 200kVac peak, 2% FS accuracy
Charging Currentmeter: 3.5″, 0 – 200mAac peak 5% FS accuracyy
Load capacitance meter: 0-6μF
Data Logger Automatic
Test duration timer: User programmable
Output cable: None: bushing output
Controls: 610mm h x 648mm w x 1803mm h, 295kg
HV Tank: 1499mm w x 2362mm d x 2210mm h, 1678kg
