MC2 Storm Lashing

As used by the Royal Navy

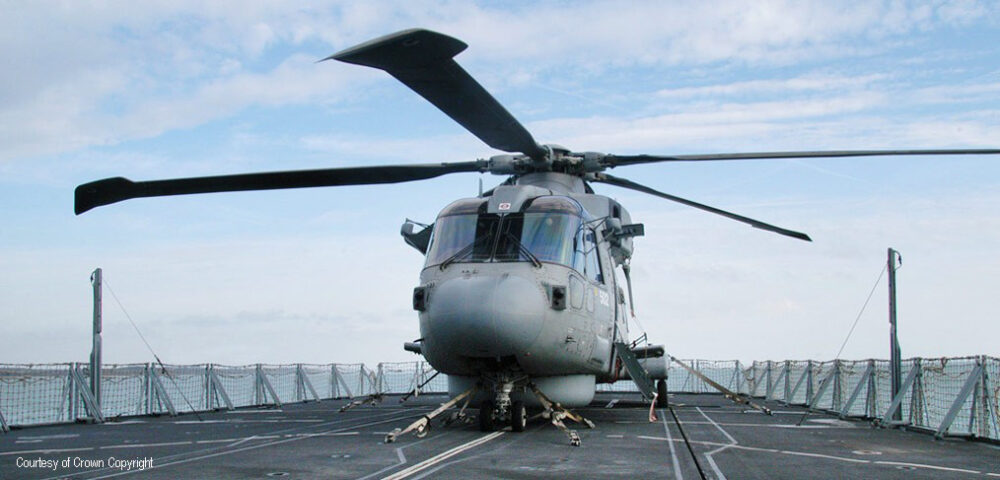

The MC2 Storm Lashing has been in use by the Royal Navy to secure heavy lift helicopters on deck for more than 15 years



15,000lb Ultimate Load

The MC2 Storm Lashing is designed for loads of up to 10,000lb (4536 Kg) and is capable of an ultimate load of 15,000lb (6804 kg).



Easy Load Quick Release

The MC2 Storm Lashing features a fast-single action over centre mechanism that gives tension and locking in one easy movement.



MC2 Brochure

Description

Many of our products have been developed through requests by customers. When a device was required to tie down the EH101 Merlin Helicopter securely to the deck of a ship, Agusta-Westland turned to Cargo Aids and the MC2 Storm Lashing was developed. This polyester webbing tie-down has a fast-single action, over centre mechanism that gives tension and locking in one movement. Quick release is also achieved in one easy action. The MC2 has a unique clutch which means that slack can be taken up without reloading the mechanism. The webbing is treated to resist abrasion and the effects of sunlight. The mechanical components are of replaceable Stainless steel selected to give maximum durability.

Additional information

Weight 4.1 kg
Dimensions 10.9 × 29.6 × 8.7 mm
NATO stock number

1730-99-1518223

Design Load | LC

10,000lb (4,536Kg)

Ultimate Load | BF Min

15,000lb (6,804Kg)

Weight with 6m webbing

9lb (4.1Kg)

Webbing width

60mm

Material

Polyester, Stainless steel
