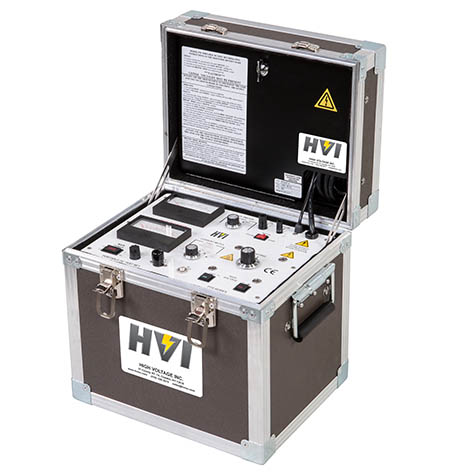

The PTS-80(F) is a CE marked DC hipot and megohmmeter in one convenient package for testing the dielectric strength and insulation resistance of electric insulation such as cable, switchgear, motors, transformer, insulators, generators, and other electrical apparatus.

The HVI Combination 2 in 1 DC Tester Series are high voltage DC proof testers and HV Megohmmeters. Testing for dielectric strength and insulation resistance is now served with one instrument, saving money, size and weight. The PTS series is designed and constructed with field use in mind. It is rugged, reliable and contains the features needed for electrical maintenance testing of new or installed electrical apparatus.

  • Continuously adjustable output voltage
  • Fixed overload, factory set to 120% of rated output current
  • Zero start and external interlock provision
  • Dual-range voltmeter
  • Five-range current meter 0-1.0 μA DC with x1, x10, x100, x1k, and x10k multipliers
  • Five-range megohmmeter 100-1 MΩ with x0.1, x1, x10, x100, and x1k multipliers
  • Guard/ground return circuit
  • Automatic transit protected meters
  • Rugged case with cushion grips
Input: 120V, 60Hz, 10A or 230V, 50/60Hz, 5A
Output: 0 – 80kVdc, 10mA, negative polarity, positive ground
Duty: Continuous
Voltmeter: 3.5″, scaled 0-40/80kVdc, ±2% FS accuracy
Currentmeter: 3.5″, scaled 0-1.0µAdc, ±2% FS with multipliers x1, x10, x100, x1k, x10k
Guard/ground load return: Yes
Megohmmeter: Scaled 100 -1MΩ with multipliers of x0.1, x1, x10, x100, x1k
Controls
Voltage output: Continuously adjustable up to max. voltage
Safety
Interlocks: Zero start and external interface
Protection: Surge and transient
Cable Length
Output cable: 6m shielded with alligator clamp
Ground lead: 6m with alligator clamp
Return lead: 6m with alligator clamp
Input line cord: 3m
Ground stick: 6m lead and clamp included
Size & Weight
Controls: 356mm w x 279mm d x 457mm h, 28kg
HV Tank: Included in controls case
