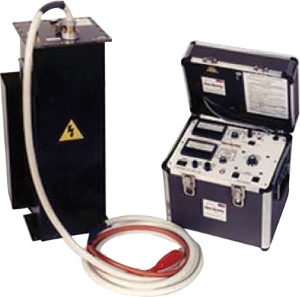

The High Voltage, Inc. PTS-200(F) 0 – 200kVdc @ 5mA high voltage test set comes with Internal discharge/bleed down resistors. For ease of use all two-piece design DC Hipots come with a cable storage bin on the HV tank section.

The HVI Combination 2 in 1 DC Tester Series are high voltage DC proof testers and HV Megohmmeters. Testing for dielectric strength and insulation resistance is now served with one instrument, saving money, size and weight. The PTS series is designed and constructed with field use in mind. It is rugged, reliable and contains the features needed for electrical maintenance testing of new or installed electrical apparatus.

  • Two range voltmeter and five range current meter
  • MΩ readings at any output voltage (w/ analogue meters)
  • Insulated return guard circuit to bypass stray leakage currents
  • Rugged case (field) with cushion grip handles and storage for leads
  • Internal discharge resistors to assist external bleed resistors
  • External safety interlock provision
  • Automatic transit protected meters rated 100 uA for durability
  • Benchtop or field controller available, analogue or digital metering
Input: 120V, 60Hz, 15A or 230V, 50/60Hz, 8A
Output: 0 – 200kVdc, 5mA, negative polarity, positive ground
Duty: Continuous
Voltmeter: 3.5″, scaled 0-80/200kVdc, ±2% FS accuracy
Currentmeter: 3.5″, scaled 0-1.0µAdc, ±2% FS with multipliers x1, x10, x100, x1k, x10k
Guard/ground load return: Yes
Megohmmeter: Scaled 100 -1MΩ with multipliers of x0.1, x1, x10, x100, x1k
Controls
Voltage output: Continuously adjustable up to max. voltage
Safety
Interlocks: Zero start and external interface
Protection: Surge and transient
Cable Length
Output cable: 6m EPR x-ray with alligator clamp
Ground lead: 6m with alligator clamp
Return lead: 6m with alligator clamp
Input line cord: 3m
Ground stick: 6m lead and clamp included
Size & Weight
Controls: 356mm w x 279mm d x 356mm h, 15kg
HV Tank: 330mm w x 368mm d x 775mm h, 68kg
