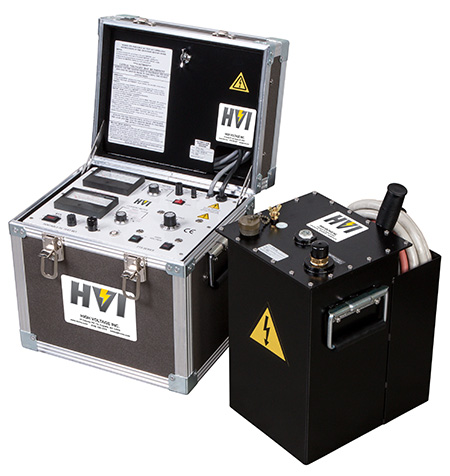

The High Voltage, Inc. PTS-130(F) 0 – 130kVdc @ 10mA high voltage test set is fully adjustable and, like all the PTS range, can be used as either a DC Hipot of Megohmmeter.

  • Two range voltmeter and five range current meter
  • MΩ readings at any output voltage (w/ analogue meters)
  • Insulated return guard circuit to bypass stray leakage currents
  • Rugged case (field) with cushion grip handles and storage for leads
  • Internal discharge resistors to assist external bleed resistors
  • External safety interlock provision
  • Automatic transit protected meters rated 100 uA for durability
  • Benchtop or field controller available, analogue or digital metering
Input: 120V, 60Hz, 15A or 230V, 50/60Hz, 8A
Output: 0 – 130kVdc, 10mA, negative polarity, positive ground
Duty: Continuous
Voltmeter: 3.5″, scaled 0-75/150kVdc, ±2% FS accuracy
Currentmeter: 3.5″, scaled 0-1.0µAdc, ±2% FS with multipliers x1, x10, x100, x1k, x10k
Guard/ground load return: Yes
Megohmmeter: Scaled 100 -1MΩ with multipliers of x0.1, x1, x10, x100, x1k
Controls
Voltage output: Continuously adjustable up to max. voltage
Safety
Interlocks: Zero start and external interface
Protection: Surge and transient
Cable Length
Output cable: 6m shielded with alligator clamp
Ground lead: 6m with alligator clamp
Return lead: 6m with alligator clamp
Input line cord: 3m
Ground stick: 6m lead and clamp included
Size & Weight
Controls: 356mm w x 279mm d x 356mm h, 15kg
HV Tank: 318mm w x 305mm d x 457mm h, 37kg
