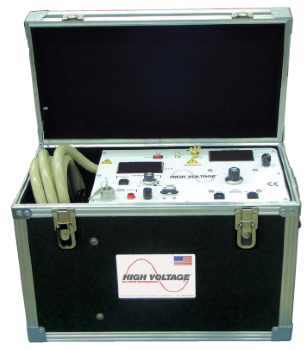

The PFT-302CE AC hipot test set provides continuously adjustable output voltages for overvoltage withstand testing of switchgear, circuit breakers, reclosers, vacuum bottles, hot sticks, motor windings and other high voltage insulation requiring AC testing.

The PFT AC Dielectric Test Set Series are AC portable field use hipots. These hipots provide continuously adjustable AC voltage typically used to provide a pass/fail, AC over-voltage withstand test on high voltage apparatus, like switchgear, circuit breakers, reclosers, vacuum bottles, hot sticks, motor windings, bus duct, and any other equipment needing an AC voltage proof test. The PFT Series offers the most field portable, affordable, and easiest to use AC testers at this voltage and power. Higher kVA AC test sets and others designed for motor & generator testing are also available.

  • Continuously adjustable output voltage
  • Adjustable overload, 10-110% of rated output current
  • Output <10 pC
  • Primary backup circuit breaker
  • Zero start and external interlock provision
  • Secondary connected single-range digital voltmeter with memory at overload
  • Single-range digital current meter with guard/ground return circuit
  • Shielded output cable precludes unnecessary insulated support of the cable
  • One-piece portable design
Input: 230V, 50/60Hz, 15A
Output: 0 – 30kVac, 67mA, sinusoidal
Duty: 2kVA: 1 hr on, 1 hour off; 1kVA continuouss
Voltmeter: 3.5″, scaled 0-30kVac, ±1% FS accuracy
Currentmeter: 3.5″, scaled 0-67mAac, ±1% FS accuracy
Guard/ground load return: Yes
Controls
Voltage output: Continuously adjustable up to max. voltage
Safety
Interlocks: Zero start and external interface
Protection: Surge and transient
Cable Length
Output cable: 6m Shielded EPR with battery clamp
Size & Weight
Controls: 585mm w x 293mm d x 395mm h, 35kg
HV Tank: Included in controls case
