- Used for rapid deployment and special operations, our fast rope system greatly accelerates the ability to infiltrate from a helicopter, maximising the surprise element whilst improving safety.
- When descent is required, ropes can be attached in one fast, effortless operation. Our fast roping system typically features up to five ropes per helicopter.
- Each rope can be released/loaded individually or simultaneously.
- Should an emergency occur several rope release options are available:
- Manual release with a thumb lever
- Electrical release from a remote point

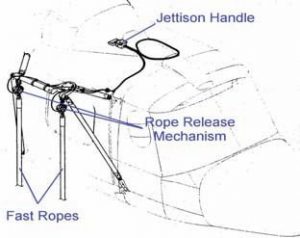

- Cable release of ropes via a jettison handle feature, which eliminates the requirement for cutting the ropes thus saving valuable time.
Each release mechanism with jettison capability – 2.5kg
Rope excluding end fittings -940g/m
12.2m, 15.2m, 18.3m, 27.4m 36.6m – ø40mm
High tenacity multi filament nylon, non-rotating, high extension
1639kg, 7000kg breaking strength
Fast, Functional, Safe

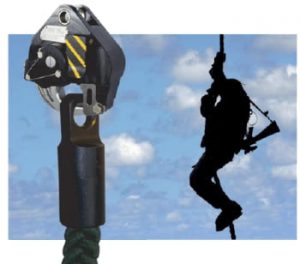

Quick and simple operation makes for a fast-functioning, safe system. Features include the keeperless release mechanism, which provides safe, repeatable loading and release capability.
High Load Rating
The fast roping system offers very high load ratings, providing excellent safety factors, reliability and versatility.
Fast-roping is the technique of descending quickly from a hovering helicopter onto the ground or a landing platform via the use of a thick rope. It is used mostly for deploying soldiers or paramilitary police in places where the helicopter cannot touch down or land.
The rope used is of distinctive design being plaited which results in a pattern on the outer circumference that is not smooth. Fast roping is quicker than abseiling although more dangerous, particularly because the rope is not attached to the incumbent with a carabiner and descender. Several people can slide down the same rope simultaneously providing there is an adequate gap between them so that each one has time to get out of the way when reaching the ground.
The rope is thick, typically 40mm (1.6”) diameter to prevent it from being wildly jerked about from the rotor down draught. Heat resistant gloves are worn by the individual descending to prevent friction burns to the hands.
Fast Rope terminations also vary depending on the aircraft connection or interface.
Fast Rope terminations also vary depending on the aircraft connection or interface. Soft Dynalite (D.L.T) is commonly used for significant weight saving requirements and being non-metallic eliminates a risk of injury to personnel on the ground when the rope is released post deployment. Drallim also offers a conical fitting termination (S.C.T) with bolt and split pin designed for use with helicopter cargo hooks and hoist systems; and a third option, termed the Multi-fit termination (M.F.T) which offers the user a strong and durable versatile rope designed to fit a wide range of helicopter cargo hook and hoist system arrangements.
Fast Rope Insertion & Extraction Systems
also known as (F.R.I.E.S) are designed as a multi-use product for rapid deployment and retrieval. Reducing the risk to helicopters and personnel, FRIES require personnel to be tethered to the rope via twin loops integrated within the weave. Typically, FRIES uses super light-weight and super strong Dyneema® and has been designed to carry up 6 fully equipped personnel.
Drallim supplied Fast Ropes can include RFID chips as an option to provide full electronic traceability. Each chip contains a unique serial number and allows end users to record product usage history by scanning the rope before and after every use.
