- circuit breaker coil operation
- spring-charging motor supply
- lightweight – only 10,6 kg / 23.4 lbs
- minimum trip voltage test of the circuit breaker’s coils
- as a power supply for tests with breaker analyzers from different vendors

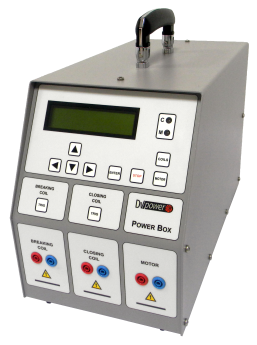

Coil Tester & Power Supply POB40AD is powerful, lightweight power supply device, ideal for operating and testing circuit breakers coils. It is also intended to supply spring-charging motors with the possibility to generate the inrush current of up to 40 A. For supplying the circuit breaker auxiliary circuits, it provides wide output DC (10 – 300 V) and AC (10 – 250 V) voltage ranges.
POB40AD has built-in capability to perform an automatic test of minimum trip-voltage (in accordance to IEC 62271-100 and ANSI C37.09 standards).
POB40AD can be used as a general power supply device or a temporary battery charger. Note that it is compatible with the circuit breaker analyzers from different vendors.
