• Timing and motion measurement
  • 6 timing channels (3×2) for main and resistive contacts
  • 6 timing channels for auxiliary inputs
  • 6 coil control channels
  • 3 transducer input channels
  • 6 additional analog input channels
  • Detailed analysis of test results using DV-Win software

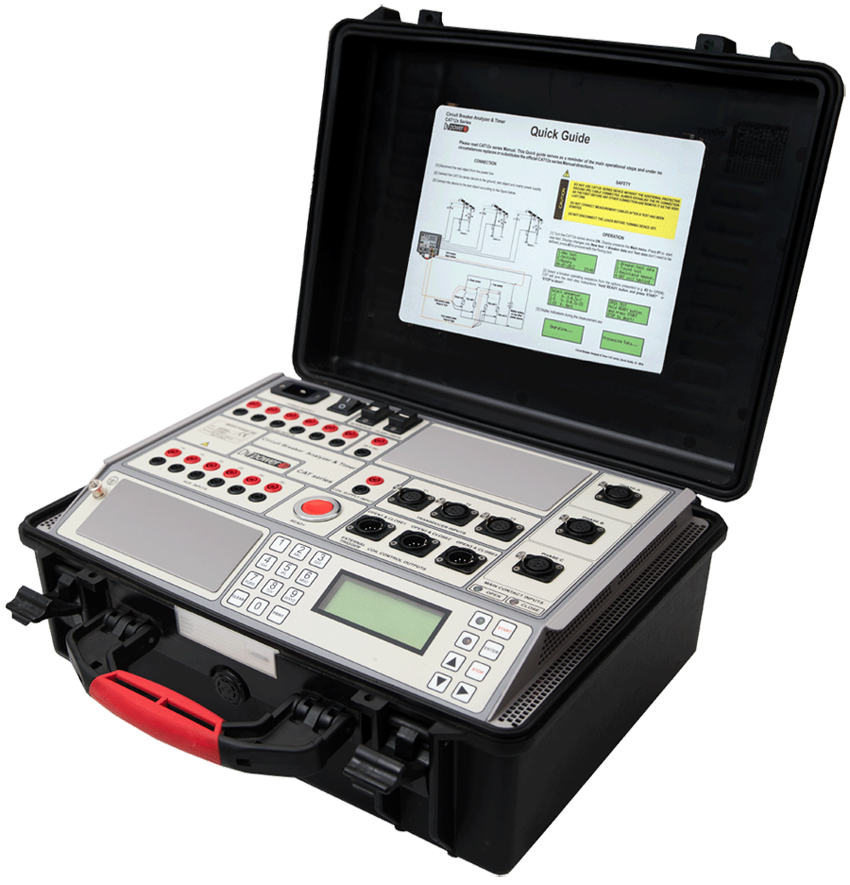

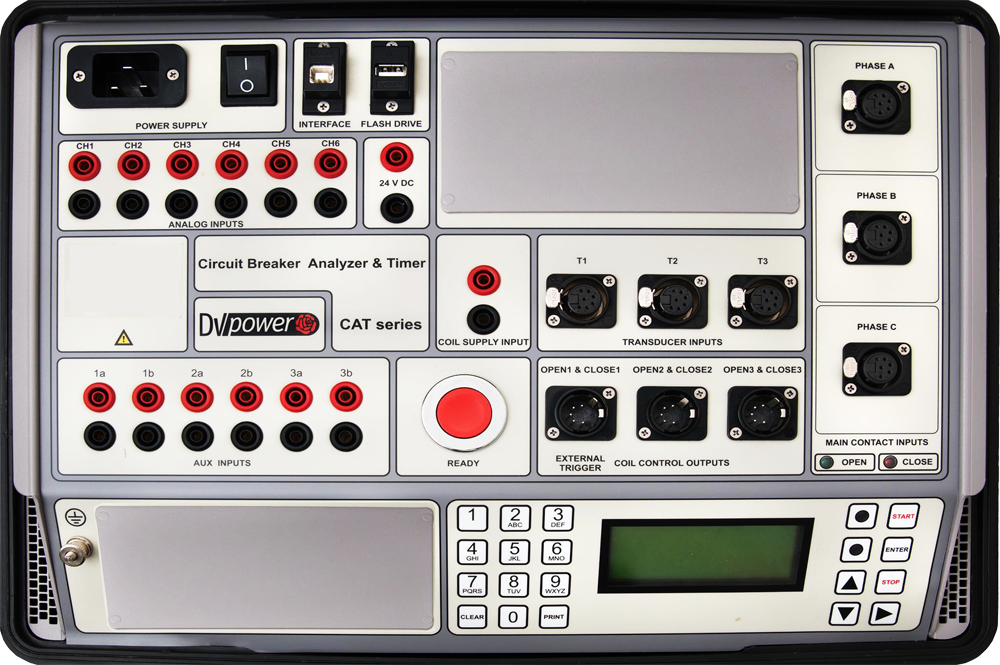

The Circuit Breaker Analyzer & Timer CAT64A instrument utilizes the latest improvements for safe and fast testing, with unique technical capabilities for additional diagnostics of circuit breakers. Sophisticated design ensures efficient and reliable operations in high-voltage substations and industrial environments.

First trip test
A “First trip” analysis is important to determine a condition of the coil operating mechanism. A circuit breaker spends most of its lifetime conducting a current without any operation. Once the protective relay detects a problem, the circuit breaker, that was idle for maybe a year or longer, has to operate as fast as possible. However, if the circuit breaker has not been operated for a long time, the latch friction may increase. Information about the latch friction can be obtained from the coil current waveform recorded during the “First trip” test.

Included accessories

  • DV-Win software
  • USB cable
  • Mains power cable
  • Ground (PE) cable
Recommended accessories

  • Main Contact Cables 5 m (16.4 ft)    with SCT clamps
  • Main Contact Extension Cables
    10 m (32.8 ft)
  • Coil control cable set 5 m (16.4 ft)    with banana plugs
  • Coil supply cable set 2 x 5 m
    2,5 mm2 (16.4 ft, 13 AWG) with    banana plugs
  • Auxiliary contacts cable set
    12 x 5 m (16.4 ft) with banana    plugs
  • Analog channels cable set
    12 x 5 m 2,5 mm2 (16.4 ft) with    banana plugs
  • Cable plastic case – large size
  • Transport case
Optional accessories

  • Main Contact Cables Extension
    10 m (16.4 ft)
  • Main Contact Cables Extension
    15 m (49.2 ft)
  • Thermal printer 112 mm
    (4.4 in)(built-in)
  • Thermal paper roll
  • Digital rotary transducer with 5 m    (16.4 ft) connection cable
  • Linear analog transducer 150 mm    (5.9 in) with 5 m (16.4 ft)    connection cable
  • Linear analog transducer 225 mm    (8.85 in) with 5 m (16.4 ft)    connection cable
  • Linear analog transducer 300 mm    (11.8 in) with 5 m (16.4 ft)    connection cable
  • Linear analog transducer 500 mm    (19.68 in) with 5 m (16.4 ft)    connection cable
  • Current clamp 30/300A + cable    set 5 m (16.4 ft)
  • Cable plastic case with wheels –    large size
  • Universal transducer mounting kit

Viewing and overlaying several graphs for complete and easy test result comparison. Selecting the measurement points and intervals using two available cursors. Zoom and pan graph feature. Specific test sequence setup. Customized configuration of test result graphs.

For the CAT form of DV-Win software there is Help menu available, with detailed instructions and explanations of all functions and features.
