As the European Telecom industry increasingly standardizes upon ETSI standards, Drallim introduces a new, high-capacity waveguide dehydrator for location in both ETSI and standard 19” racks. Reversible mounting brackets allows the same unit to fit within either enclosure without any further need for mounting brackets or plates. Whether you choose the 230vAC or the 48vDC variant, the 12446 boasts an impressive output of over 220 litres per hour at an excellent dewpoint of -40ºC.
The unit comes with 2 fixed output pressure options of either 15 or 40 mbar, and 6 off ¼” pneumatic outlets as standard. Despite its physical dimensions, the 12446 houses a high capacity, high pressure air storage vessel which allows the unit to remain inactive for extended periods of time, keeping maintenance requirements to an absolute minimum.

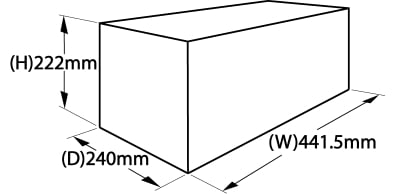

|Dry air delivery||Output pressure||Dry air dewpoint||No. of outlets||Height (mm)||Width (mm)||Depth (mm)||Weight (kg)||Operating voltage|
|226l/hr(8ft³/hr)||15 mbar or 40mbar||-40ºC||6||222||441.5||240||14.5||230v AC & 48v DC|
