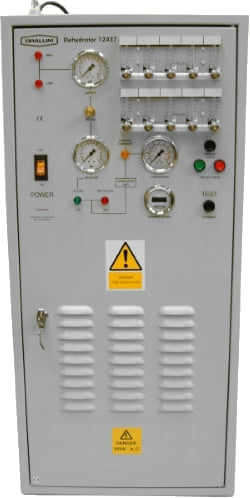

This unit is based directly upon the BT approved CDU3C, but has been extended to include a built-in regulator and pressure gauge, eliminating the need for separate panels. It can be supplied in either a 5 outlet, or a 10-outlet variant, with each outlet using an individual flowmeter which gives the operator an instant visual indication as to air flow within a cable or waveguide.
The 12437/H uses an efficient 1/3 HP compressor, to fill its integral receiver to a pressure more than 60 p.s.i. The receiver is a high capacity metal item, which has been tested and Lloyds certified at three times the units’ maximum working pressure.
In addition to the larger receiver, which will return a shorter duty cycle on larger flow or capacity applications the unit benefits from built in compressor and receiver gauges. These gauges can help the operator to assess the condition of a unit, and help with fault finding in the event of a failure. Another useful feature of this unit is the humidity detector test facility, which assists in fault analysis alongside the standard remote alarms. In common with all our current units, the 12437/H is equipped with a thermal/magnetic overload circuit breaker with neon indicator.
|Dry air delivery||Output pressure||Dry air dewpoint||No. of outlets||Height (mm)||Width (mm)||Depth (mm)||Weight (kg)||Operating voltage|
|35 ft³/hr||3 – 15 psi||-35ºC||5 or 10||960||440||330||60||230 v AC|
