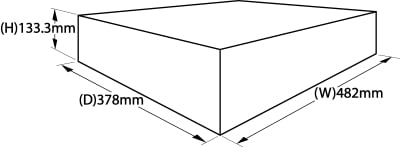

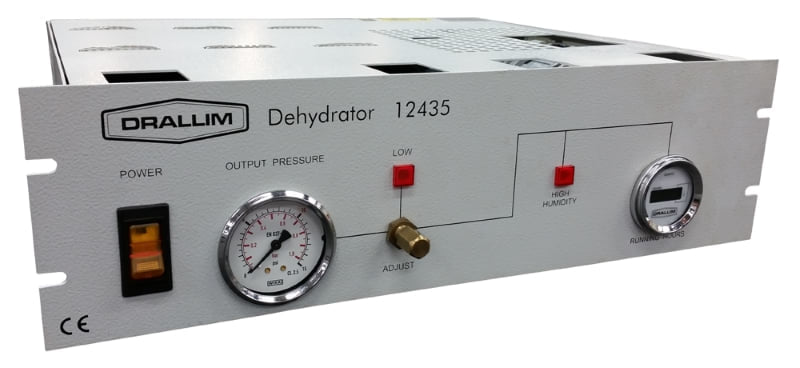

Designed to be mounted within a 19” rack, the 12435 Waveguide Dehydrator is one of our most compact units, occupying just 133mm in height. Using a quiet, low vibration compressor, the unit can produce 5 cubic feet per hour of dry air at output pressures of between 0.5 and 5psi.
Despite its dimensions, the 12435 Waveguide Dehydrator houses an integral receiver, which allows the compressor to remain inactive for extended periods of time, reducing running costs. Complete with an output pressure regulator and gauge, the 12435 Waveguide Dehydrator is delivered ready for connection to up to 3 waveguide tubes, via ¼” outlets on the rear of the unit. Standard alarm monitoring facilities include our humidity detection equipment and low-pressure alarm switches. Alarm conditions are communicated both visually, and remotely via a hard-wired connection.
|Dry air delivery||Output pressure||Dry air dewpoint||No. of outlets||Height (mm)||Width (mm)||Depth (mm)||Weight (kg)||Operating voltage|
|35 ft³/hr||0.5 – 7 psi||-35ºC||3||820||320||200||30||230v AC|
