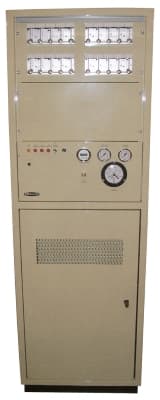

The 12255 is a unit which stands little more than 1.6m tall, and yet houses the 3/4HP compressor which provides the unit with the ability to produce over 100 cubic foot per hour of air at 9 psi.
IIn common with all the current Drallim pressurisation units, the 12255 will dry the output air to a minimum dewpoint of -40C. The standard humidity detection equipment within the unit ensures that, should a problem occur, any moist air will be exhausted to atmosphere rather than being allowed to enter your cables. Sound-proofing is a standard feature of the 12255 and helps to keep the units’ noise to a maximum of 60dBA at lm. Standard features also include a gauge for the total output pressure and an individual flowmeter for each of up to 40 outputs.
| Dry Air delivery | Output pressure | Dry air dewpoint | No. of outlets | Height (mm) | Width (mm) | depth (mm) | Weight (kg) | Operating voltage |

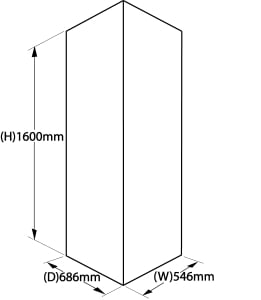

| 100 ft³/hr | 3 -15 psi | -40ºC | up to 20 | 1600 | 546 | 686 | 190 | 110v AC or 230v AC |
